JCB Agriculture Construction Equipment Diagnostic Tool JCB Electronic Service Tool DLA Adapter Kit

Description

JCB Service Master is a gateway application allowing a large number of Vehicle Support Applications to be linked using one familiar interface. The interface acts as a graphical tool for selecting the target vehicle from a groups of Vehicle Families and triggering the particular Service Tool Application desired. This removes the need for a user to ‘remember’ every individual service tool available and select which one if intended for a particular machine.



The JCB Service Master also provides several key features that will accompany all JCB projects, a Multi Language editing tool that provides a means of individual text string translation for all JCB Applications and a means to select a localised language translation for the each JCB Application.



Software version: servicemaster4 1.73.3



Features：

1. Reads fault codes and ranks them in order of importance.
2. Calibrates, parameterize ECM and program blocks.
3. Conducts dropping service intervals.
4. Compatible with software JCB Service Master 4 (2019).
5. It works with CAN protocol in OBD II system.
6. It is provided with instructions for use, repair and diagnostics of vehicles JCB engines and Isuzu, Deutz, Cummins.
7. Full original JCB repair and service manuals and bulletins
8. JCB spare parts for all markets
9. Programming special parameters (order separately)
10. Supported languages: English, German, Spanish, French, Italian, Portuguese.



Model Supported:



Agricultural models:

1. Fastrac Tractors (2000-3000, 3000 Series 2, 3000 Series 3, 3000 Series 4, 7000 Series, 8250 Series 1, 8250 Series 2, 8000 Series 3),
2. Telescopic Handlers (2007-, 2007+, Tier 4, 525-60 Compact Load all),
3. Wheeled Loading Shovels (Large, Large 2012+, Compact (Tier 4 CWLS), Medium (411, 413 ,417, 418S Tier 4i)
4. Telemasters (TM180/220, TM310, TM320)



Construction models:

1. Backhoe Loaders,
2. AMS/DECU Machines (Tracked (JS/JZ/JZ70), Wheeled),
3. Compact Excavators (Mini/Midi) (801-8065, 8080-8085,65R1-86C1),
4. Telescopic Handlers (2007-, 2007+, Tier 4, 525-60 Compact Loadall),
5. Skidsteer Loaders (Robot, Other), Teletrucks (Tier 4),
6. Wheeled Loading Shovels (Large, Large 2012+, Compact (Tier 4 CWLS), Medium (411, 413 ,417, 418S Tier 4i)),
7. Telemasters (TM180/220, TM310, TM320)),
8. Articulated Dump Trucks, Vibratory Compactors (Tier 3, Interim Tier 4, VMT380/430),
9. Rough Terrain Forklifts (Tier 2/3 RTFL, Tier 4 RTFL),
10. Teletruks (Tier 4).



Waste models:

Telescopic Handlers (Tier 3, Tier 4).



Engines:

1. Dieselmax and Dieselmax 672 (IPU, OEM Base, G Drive),
2. Ecomax (IPU, OEM Base, G Drive), Kohler TCR Engine.
3. Generators: G46X/QX, G141X/QX, G165S/QS, G200S/QS, G220S/QS.



Packing List:

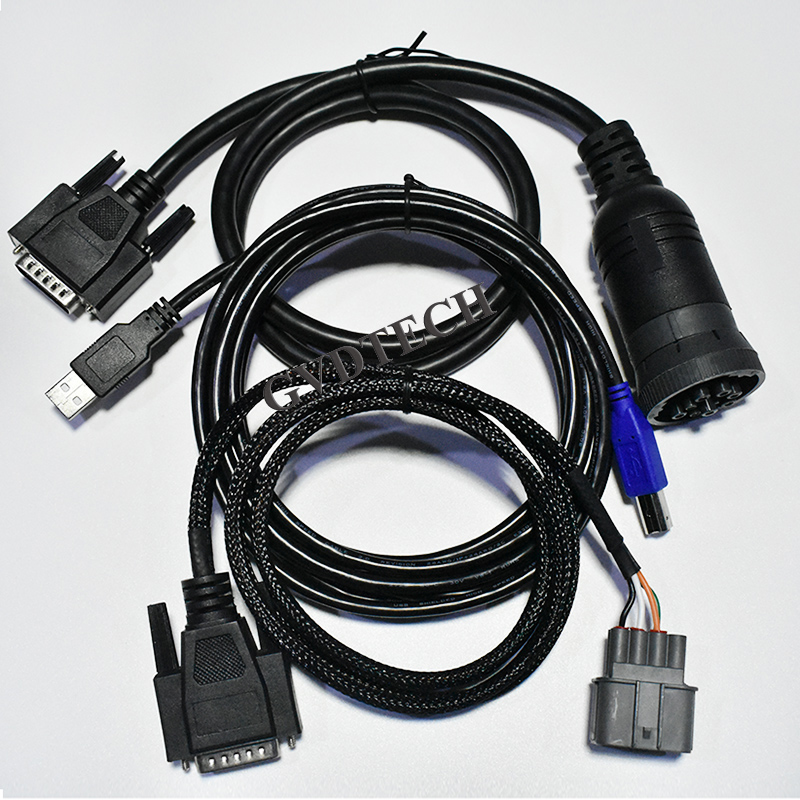

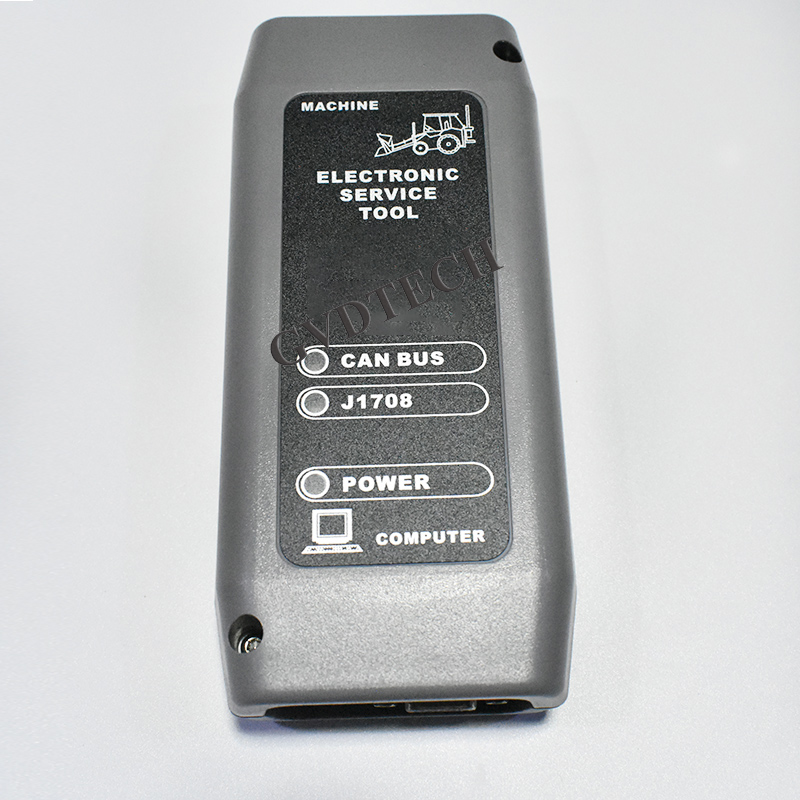

• 1pc * Data Link Adapter
• 1pc * USB cable
• 1pc * 9-pin Deutsch adapter
• 1pc * 8-pin cable
• 1pc *JCB ServiceMaster4 SM4.1.73.3 CD
